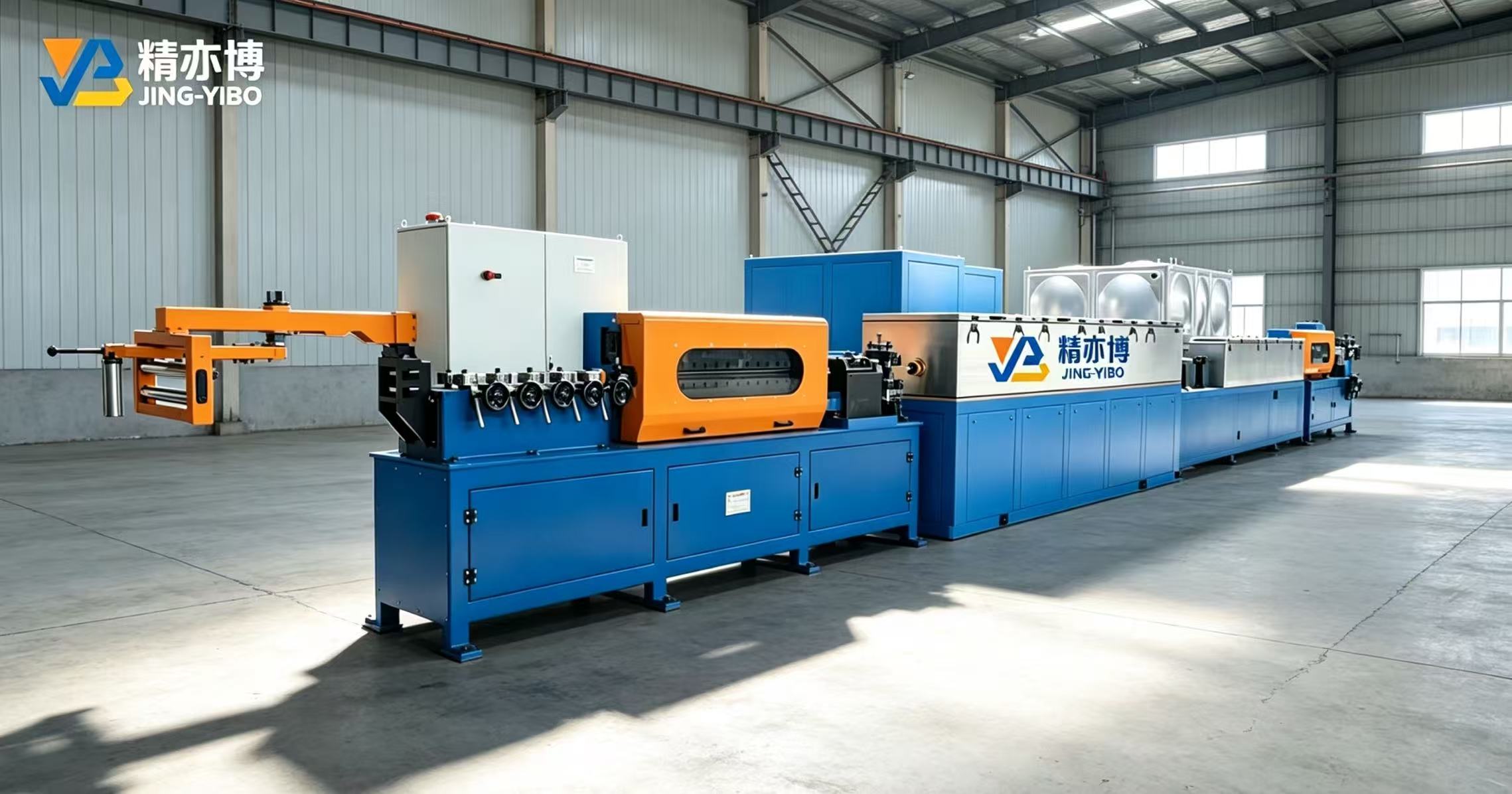

1. 设备概述Machine Overview.
1.1.它集现有内螺纹铜、铝管成型机优点于一身，是
精亦博
传统的V型槽，正立盘，链条胶块式等内螺纹机组的替代
JING-YIBO
智警
机型，是新一代的铝管内螺纹成型机组。
A
It combines the advantages of existing intermal thread
广市
copper and aluminum tube forming machines, serving as a
replacement for traditional intermal thread machine units such
as those with V-shaped grooves, upright disks, and chain
rubber blocks. It represents a new generation of aluminum
tube intermal thread forming machine units.
1.2.该机组设计新颖、结构合理，整套机组采用了多
项当前新技术：成型系统采用了超高速旋压成型、拉拔部
份采用连续多楔带工艺、在生产过程中成品内螺纹管无金
属接触，椭圆度≤0.010.02 mm、不会产生磨擦痕迹、
无硬夹痕、压伤、划伤、成品表面光洁度高产品更具市场竞争力,控制部分采用了PLC可编程控制。
The unit has a novel design and reasonable structure, and the entire set of units adopts multiple current new technologies: the forming system
s d sn s s s n son
metal contact during the production process, the elipticity is ≤ 0.01-0.02 mm, there are no friction marks, no hard clamping marks, pressure damage,
scratches, and the finished product has a high surface smoothness, making it more competitive in the market. The control part adopts PLC
programmable control.
2.设备技术参数Machine main technical parameters
2.1.高速旋压电机转速High speed spinning motor speed：3500orpm15KW high speed motor高速电机，进口陶瓷球轴承，钛合金轴接头
imported ceramic ball bearings, titanium alloy shaft joints.
2.2.高速旋压电机润滑方式Lubrication method for high-speed spinning motor：油气润滑oil air lubrication.
2.3.收卷电机功率为Takeupmotorpower:5.5KW
2.4.多楔带拉拔机功率为Caterpillar drawing unit motor power:18.5KW
2.5.成品铜管规格范围
Finish copper/aluminum tube range: Φ 5 ～ Φ 9.52mm
2.6.放料方式Pay off way：主动料筐放料Driving basket pay off.
2.7.多楔带拉拔机长度Caterpillar drawing unit length：2.8m
2.8.收料筐直径
Take up basket dimension: 3050mm x 1400mm.
2.9.料筐重量Basket weight:900kg
2.10.拉拔速度Drawing Speed：0一60m/min。根据实际需要手工调节旋压/拉伸速度比例（无级调速）Manually adjust the spinning/stretching
speed ratio according to actual needs (stepless speed regulation).
2.11.总功率General power：46KW
